Description

Cat6 Plenum Shielded F/UTP Bare Copper 550MHz Cable – Premium Quality and Safety

Exceptional Fire Safety and Performance

Our Cat6 Plenum Shielded F/UTP Bare Copper Ethernet Cable is engineered with a CMP (Communications Multipurpose Plenum) jacket, designed for installation in air-handling spaces such as above suspended ceilings and below raised floors. The CMP-rated jacket provides high flame resistance and low smoke emission, making it an excellent choice for commercial buildings, data centers, offices, and other professional networking environments.

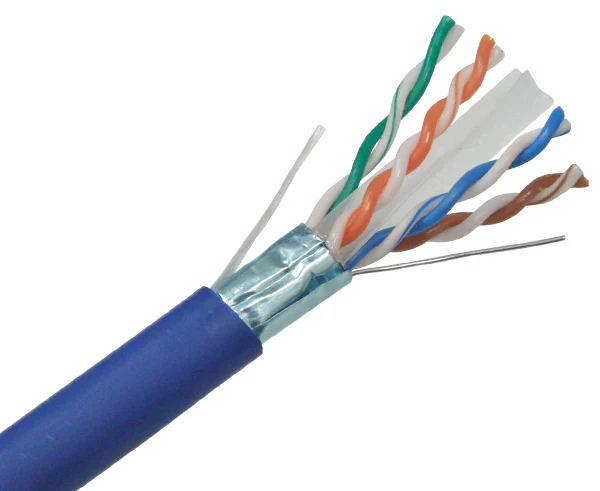

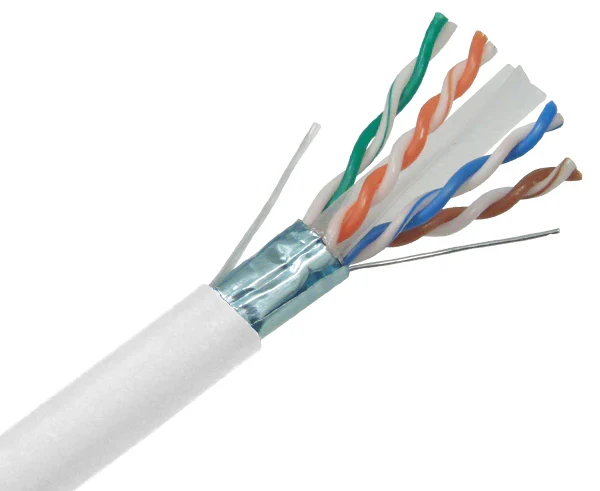

The F/UTP construction features an overall foil shield surrounding all four twisted pairs, helping reduce electromagnetic interference (EMI) and external noise for improved signal integrity in demanding installations.

Unmatched Performance for High-Speed Networking

Speed and Distance: This Cat6 Shielded F/UTP cable supports network speeds of 1 Gigabit and 5 Gigabits per second over distances up to 328 feet, and up to 10 Gigabits per second over shorter distances of approximately 165 feet, depending on installation conditions and network equipment.

Bandwidth Capability: Tested up to 550MHz, this cable delivers reliable bandwidth for business networks, IP cameras, VoIP systems, access points, and other high-performance networking applications.

Shielded Design: The F/UTP construction incorporates an overall foil shield to help protect against external electromagnetic interference. Combined with the twisted-pair design and internal spline, it helps maintain signal quality and consistent network performance.

Advanced Features for Easy Installation

Efficient Installation: Sequential footage markings every 2 feet help installers track cable usage and estimate remaining cable length accurately. The EZ Pullbox or reel design supports convenient handling and efficient cable installation.

Durable Construction: The internal spline helps maintain pair separation, support cable geometry, and reduce kinking during pulling and installation.

Shielding for Reliable Performance: The overall foil shield helps reduce the effects of external interference in electrically noisy environments. For optimal shielding performance, use compatible shielded connectors and properly grounded shielded networking components.

Broad Compatibility and Technical Specifications

Connector Compatibility: Compatible with appropriately rated Cat6 shielded RJ45 connectors and other compatible networking components. For best results, use shielded connectors and ensure proper grounding and bonding throughout the installation.

Technical Specifications:

• Category: Cat6
• Cable Type: F/UTP (Foil/Unshielded Twisted Pair)
• Conductor Material: Solid Bare Copper
• Conductor Size: 23 AWG
• Bandwidth: Tested up to 550MHz
• Cable Length: 1000 feet
• Jacket Rating: CMP Plenum
• Shielding: Overall foil shield
• Internal Structure: Four twisted pairs with spline
• Conductor Insulation Diameter: Approximately 0.95mm
• Overall Cable Diameter: Approximately 6.00mm, subject to final construction specifications

Superior Conductor Material – 100% Solid Bare Copper

Pure Solid Bare Copper Conductors: This cable uses solid bare copper conductors to provide excellent electrical conductivity and dependable performance for Ethernet and Power over Ethernet (PoE) applications when installed within the applicable standards and equipment limits.

Unlike copper-clad aluminum (CCA), solid bare copper provides lower conductor resistance and is the preferred conductor material for professional structured cabling installations.

Certifications, Testing and Compliance

Fluke DSX-8000 Testing: Cable performance can be verified using a Fluke DSX-8000 Versiv CableAnalyzer against applicable ANSI/TIA-568.2-D requirements. Test reports should be provided for the actual cable and test configuration.

Environmental Compliance: RoHS-3 compliance supports applicable restrictions on hazardous substances.

cETLus Certification: The cable’s cETLus certification should be verified against the exact product model and applicable certification listing to confirm compliance with relevant safety requirements.

Ideal Applications

• Commercial buildings and office networking
• Data centers and structured cabling systems
• IP surveillance cameras and security systems
• VoIP phones and wireless access points
• Power over Ethernet (PoE) installations
• Plenum spaces requiring CMP-rated cable
• Networking environments where additional protection against electromagnetic interference is desirable

Choose Cat6 Plenum Shielded F/UTP Bare Copper Cable for dependable networking performance, reduced susceptibility to external interference, and professional-grade installation quality.
