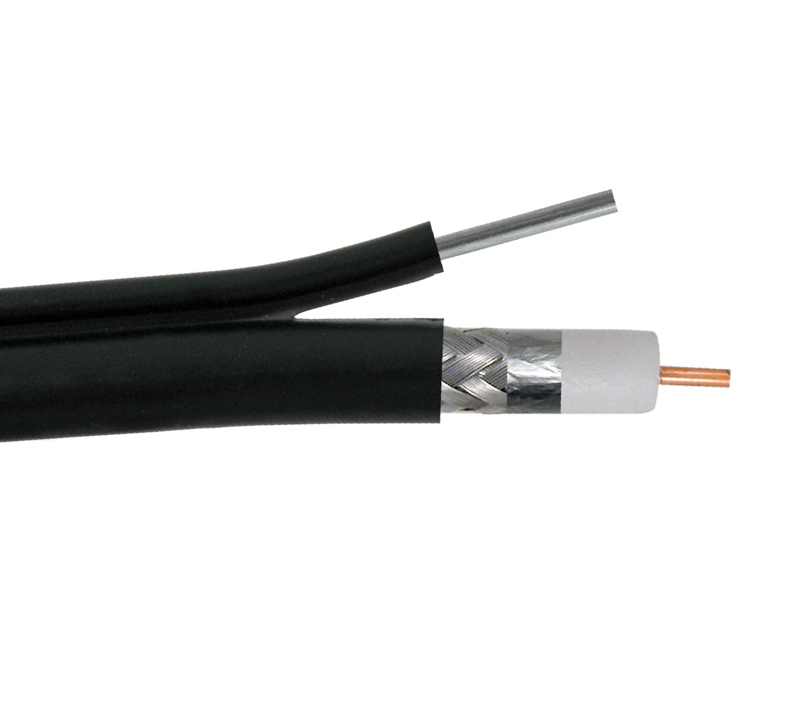

RG6 Standard Shield, W/ Messenger, 18 AWG CCS, 60% Aluminum Braid, 3GHz, 1000ft, CM, Spool, Black
Original price was: $299.99.$279.99Current price is: $279.99.
- 18AWG Solid Conductor
- Messenger (Aerial Installs)
- Sweep Tested to 3GHz
- 75 Ohm Impedance
- Flame Retardant PVC Jacket
- ISO 9001:2000

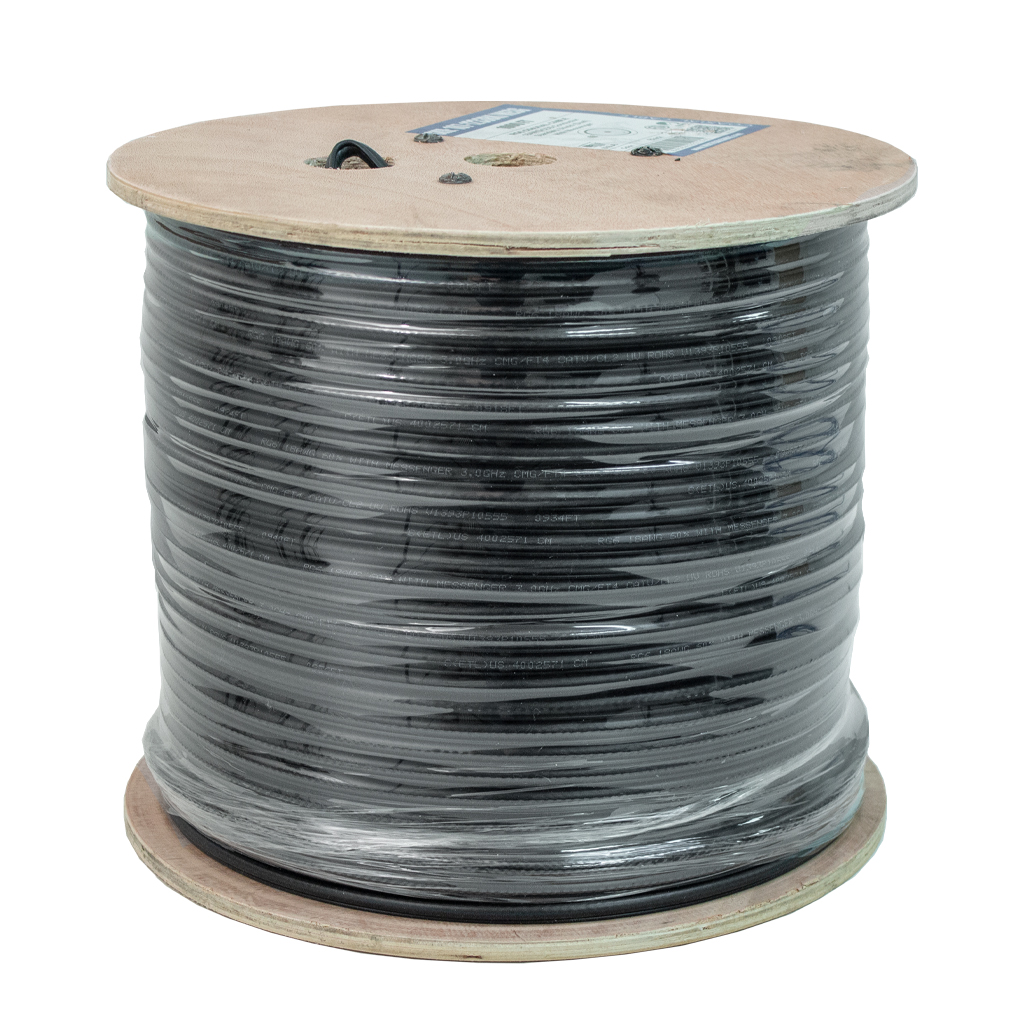

- Supplied in 1000ft Wooden Spool
- CM Rated
- ETL Listed, ROHS Compliant
Did you like this product? Add to favorites now and follow the product.
(347) 480 1717Start Live Chat
Description

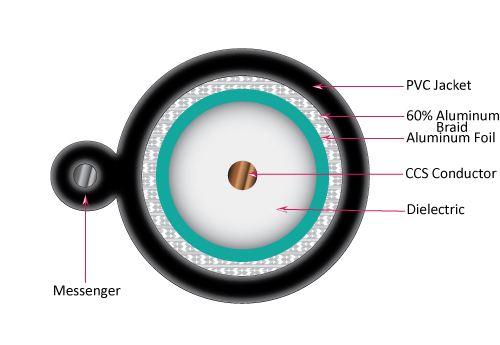

Construction
Construction Conductor: Copper Clad Steel (CCS)
Size (±0.01mm): 1.02 (18AWG)
Dielectric: Foam PE
Size (±0.05mm): 4.57
Shield 1: Bonded Aluminum Foil
Braid: Alu-Mag
Messenger: Galvanized Steel
Diameter (mm): 1.15
Electrical Characteristics
Sparker Test: 4000VAC
Impedance (±3Ω): 75
Capacitance (±3pF/m): 54
Velocity of Propagation: 85%
Return Loss: (1~470Mz)≥25dB
(470~1000Mz)≥22dB
(1000~3000Mz)≥18dB
Mechanical Characteristics
Minimum Breaking Strength of Messenger: 0.051 180lb 82Kgf
Temperature Range: -15°C to +70°C
Operating Temperature Range: -20°C to +70°C
